At Machine Tools 24/7 we never stop working to serve your machine tool needs

Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
158932010SodickAQ 537LSodick LQ33W

 DescriptionSpec Values
Capacity:Maximum Workpiece Size30.3" x 20.5" x 11.02"
 Maximum Workpiece Weight2,500 Lbs
Travels:X-Logitudinal22.4"
 Y-Cross14.57"
 Z-Vertical13.7"
 U & V Axes4.72" +/-
Taper:Taper25° +/-
Tank:Tank Length / Width / Depth41.1" / 28.35" / 13.25"
 Maximum Cutting Speed16" P/Hours
 Tank Capacity85 Gallons
Wire:Wire Diameter Range.004" - .012"
 Maximum Wire Spool Weight18 Lbs
Dimensions:Floor Space (L x W x H)96" x 78" x 93"
 Weight (approx.)10,000 Lbs

 Equipped With
Additional Info.:High-Speed Electrolysis Free Circuit
 Simultaneous U-V Taper Control
 Chiller
 RS-232 Port
 Multi Task OS
 Automatic Wire Threading
 Linear Scales
 Submersible Flushing
 Automatic Temperature Control
 Complete Dielectric Filtration System
 Linear Motor Technology
Note:2009 Machine Bought New in 2010 - 16,051 Cutting Hours


Click Here To Print Quote - 15893

Click Here To Email Quote Request - 15893

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

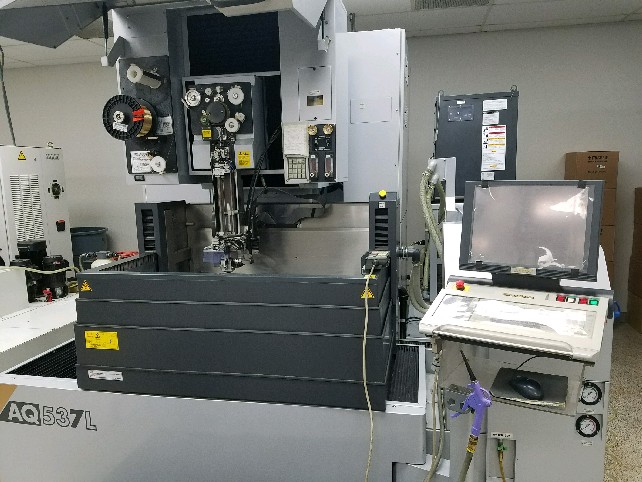

SodickAQ 537L15893http://www.machinetools247.com/images/machines/15893-Sodick AQ 537L.jpg

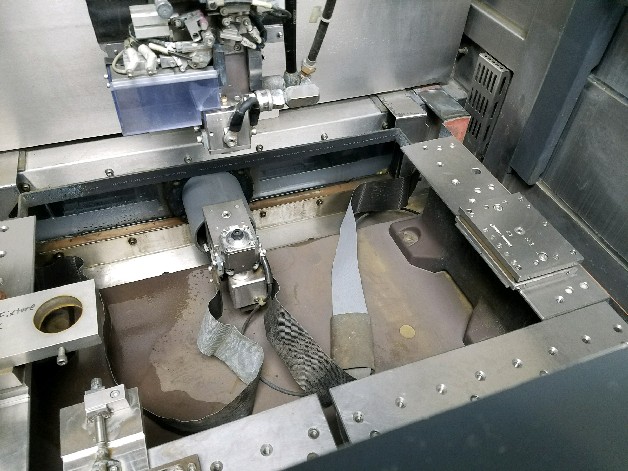

SodickAQ 537L15893http://www.machinetools247.com/images/machines/15893-Sodick AQ 537L 1.jpg
