Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
161092015Nakamura-TomeWY-100Fanuc 31iA

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide9.6" / 7.6"
 Maximum Cutting Diameter (turret one & turret two)6.89"
 Maximum Turning Length / Distance Between Spindles23.15" / 32.28"
Main Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.48" / 2" / A2-5
 Motor (30 min. / cont.)15 / 10 HP
Sub-Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.2" / 1.65" / A2-5
 Motor (30 min. / cont.)15 / 10 HP
Turrets:Number of Positions (turret one / turret two) 12 Live x 212 / 12 Tools Each
Travels:X-Axis Travel (turret one X1 / turret two X2)5.31" / 5.31"
 Z-Axis Travel (turret one Z1 / turret two Z2 / Z3)9.6" / 9.6" / 22.75"
 Y-Axis Travel2.44" +/-
 B-Axis Travel (sub-spindle)24.44"
Rotary Tools:Rotary Tool Speed100 - 6,000 RPM
 Rotary Tool Motor (30 min. / cont. turret one & turret two)10 / 5 HP
Rapids:Rapid Traverse (X & B / Z / Y / B)708 / 1,416 / 393 IPM
 Cutting Feed Rate188 IPM
Dimensions:Floor Space (L x W x H)110" x 80" x 80"
 Weight (approx)17,000 Lbs

 Equipped With
 CAMplete Software
 Rigid Tapping
 Two (2) USB Ports
 6" 3-Jaw Chuck For Sub-Spindle
Note:Machine Like New, Never Used In Production
 223 Maintenance Hours On Machine
Additional Info.:ATS Collet Chuck Main Spindle & Sub Spindle
 Chip Conveyor
 Miscellaneous Tooling
 Bar Feed Interface
 Coolant Through Spindle
 Auto Parts Catcher
 Nine (9) Axis Control, Four (4) Simultaneously
 LNS Quick Load Servo 80 S2 Bar Feed
 Coolant & Air Flush
 Helical Interpolation
 Conversational Control
 NT Nurse II System
 Helical Interpolation

Click Here To Print Quote - 16109

Click Here To Email Quote Request - 16109

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.


ManufacturerModelMachine IDMachine Photos

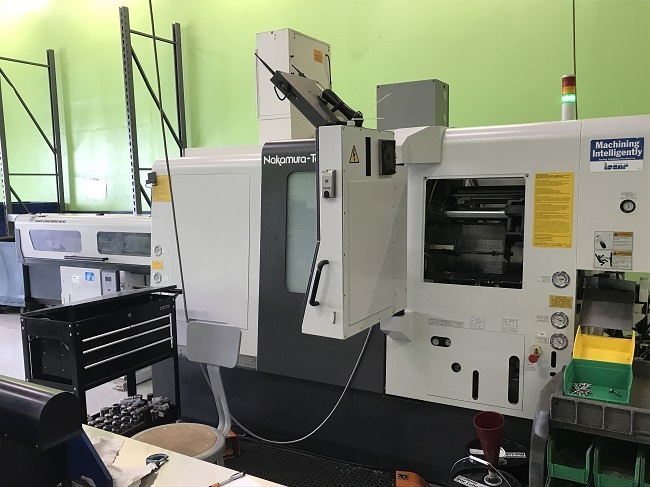

Nakamura-TomeWY-10016109 WY-100.jpg

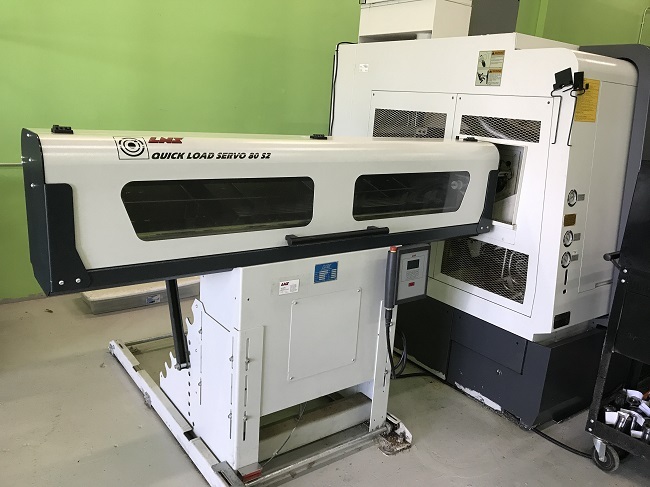

Nakamura-TomeWY-10016109 WY-100 a.jpg

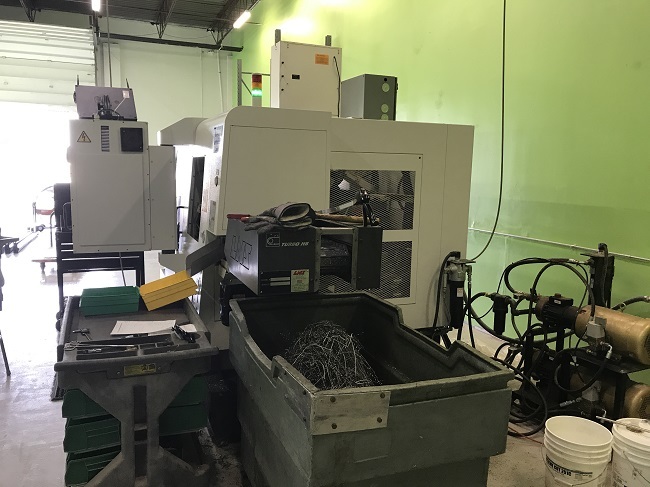

Nakamura-TomeWY-10016109 WY-100 b.jpg
Nakamura-TomeWY-10016109 WY-100 c.jpg

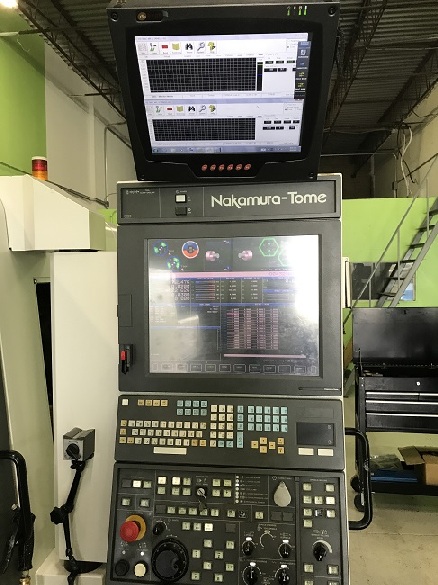

Nakamura-TomeWY-10016109 WY-100 d.jpg

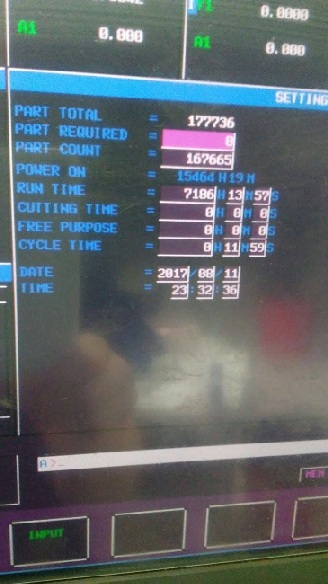

Nakamura-TomeWY-10016109 WY-100 e.jpg
