At Machine Tools 24/7 we never stop working to serve your machine tool needs

Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
164101997ToshibaTUE-15Fanuc 18T

 DescriptionSpec Values
Capacity:Table Diameter / Maximum Swing / Table Load59.05" / 70.86" / 17,600 Lbs
 Maximum Height Under Ram / Maximum Turning Height67.75" / 59.05"
Spindle:Speeds2 - 250 RPM
 Motor (30 min. / continuous)40 / 30 HP
Head(s):Number of HeadsOne ATC - 50 Taper
 Type Head(s) / Ram SizeRam Head / 10" x 10"
Travels:X-Axis Vertical / Horizontal Ram Travel35.4" / 47.24"
 Y-Axis Ram Stroke / Rail Travel35.43" / 35.43"
 Rail Adjustment41.3"
Feeds:Rapid Traverse393 IPM
Tool Changer:Number of Positions12 ATC
Dimensions:Floor Space (L x W x H)195" x 170" x 195"
 Weight (approx.)38,000 Lbs

 Equipped With
Additional Info.:59" 4-Jaw Chuck
 Hardened Ways
 Steel Way Covers
 Coolant System
 Chip Conveyor
 Ball Screws & Independent Servo Drives
 Remote Jog Handle


Click Here To Print Quote - 16410

Click Here To Email Quote Request - 16410

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

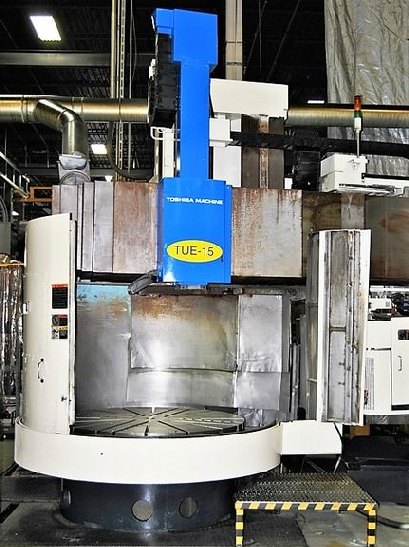

ToshibaTUE-1516410http://www.machinetools247.com/images/machines/16410-Toshiba TUE-15.jpg

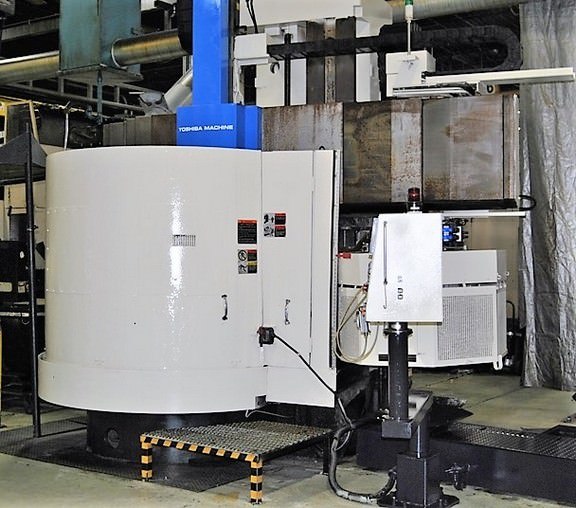

ToshibaTUE-1516410http://www.machinetools247.com/images/machines/16410-Toshiba TUE-15 a.jpg

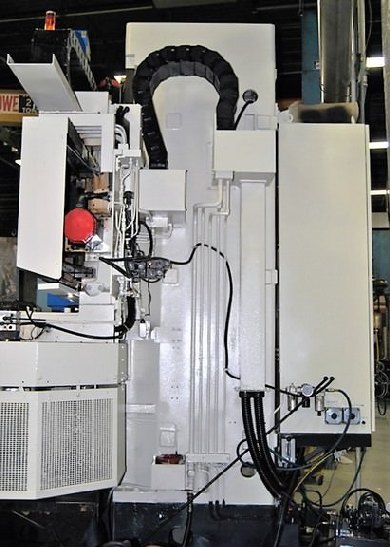

ToshibaTUE-1516410http://www.machinetools247.com/images/machines/16410-Toshiba TUE-15 b.jpg

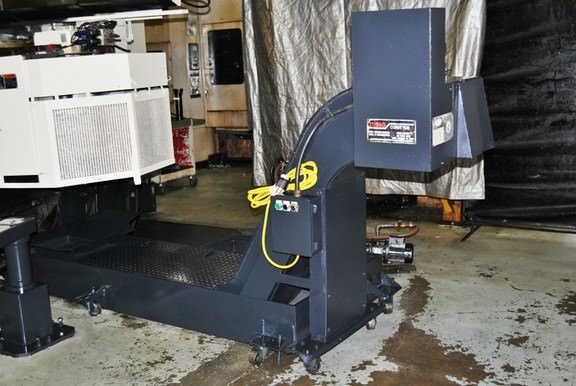

ToshibaTUE-1516410http://www.machinetools247.com/images/machines/16410-Toshiba TUE-15 c.jpg

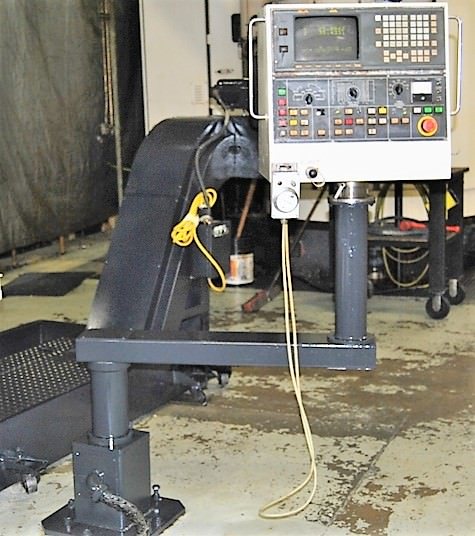

ToshibaTUE-1516410http://www.machinetools247.com/images/machines/16410-Toshiba TUE-15 d.jpg
