Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
164462001MazakQuick Turn-250 HPMazatrol Fusion 640 T

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide23.65" / 10.5"
 Maximum Turning Diameter / Maximum Turning Length15.70" / 19.68"
 Distance Between Centers20.1"
Spindle:Spindle Speeds Minimum - Maximum40 - 4,000 RPM
 Spindle Bore / Bar Capacity / Nose3.15" / 2.75" / A2-8
 Main Motor (30 min / continuous)20 / 15 HP
Turret:Number of Positions / Indexing Time12 Stations / 0.2 Sec
Travels:X-Axis Travel8.46"
 Z-Axis Travel20.1"
Tailstock:Stroke of Body / Quill18.1" / 5.12"
 Quill Diameter / Taper3.15" / # 4 MT
Rapids:Rapid Traverse (X / Z)1,200 / 1,300 IPM
Dimensions:Floor Space (L x W x H)107" x 64" x 69"
 Weight (approx.)10,500 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Hydraulic Chuck
 Tool Eye
 Chip Conveyor
 Conversational Programming
 Programmable Tailstock
 Parts Catcher
 Bar Feed Interface

Click Here To Print Quote - 16446

Click Here To Email Quote Request - 16446

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.


ManufacturerModelMachine IDMachine Photos
MazakQuick Turn-250 HP16446 Quick Turn-250 HP.jpg

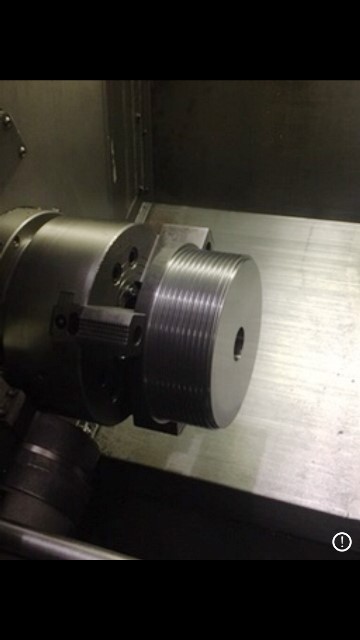

MazakQuick Turn-250 HP16446 Quick Turn-250 HP 1.jpg

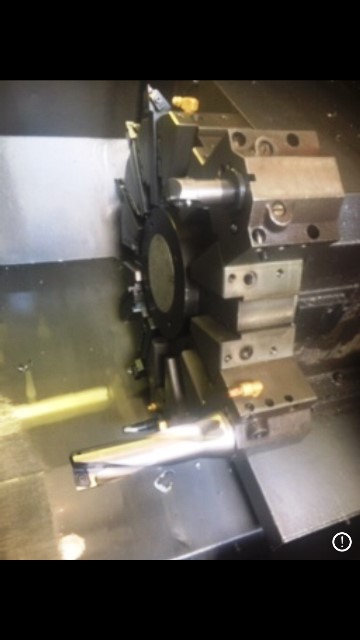

MazakQuick Turn-250 HP16446 Quick Turn-250 HP 2.jpg
