Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
164522012You JiYV-1600 ATCFanuc 18T

 DescriptionSpec Values
Capacity:Table Diameter / Maximum Swing / Maximum Turning Dia.62.99" / 78.74" / 70.86"
 Maximum Cutting Height / Maximum Table Load47.24" / 17,600 Lbs
Spindle:Speeds (2 speed ZF gearbox)2 - 250 RPM
 Motor60 / 50 HP
Head(s):Number of HeadsOne Ram With 12 ATC
 Ram Size / Ram Taper9" x 9" / 50 Taper
 O.D. Tool / I.D. Tool / Change Time1.25" / 2.5" / 30 Sec.
Travels:Ram Head - Vertical Travel / Cross Travel35.43" / -3.93" / + 44.3"
 Vertical Travel of Rail Head31.49"
Rotary Tools:Rotary Tool Speed (2-speed geared)2 - 2,400 RPM
 Rotary Tool Motor / C-Indexing20 HP / 360,000°
Feeds:Rapid Traverse472 / 394 IPM
 Feed Range.01 - 78.7 IPM
Dimensions:Floor Space (L x W x H)219" x 205 x 209"
 Weight (approx.)55,000 Lbs

 Equipped With
Additional Info.:69.99” 4-Jaw Chuck
 Way Covers
 Chip Conveyor
 Oil Chiller
 Full Enclosure
 Remote Jog Handle
 Live Milling
 ZF Dual Speed Gearbox
 Renishaw Probe
 High Pressure Coolant Through Spindle


Click Here To Print Quote - 16452

Click Here To Email Quote Request - 16452

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

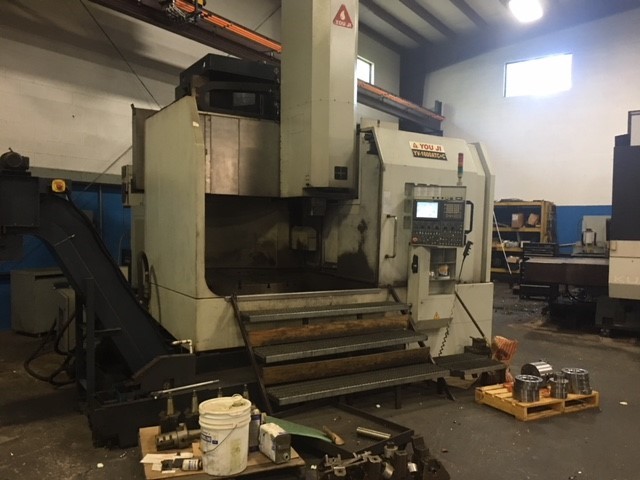

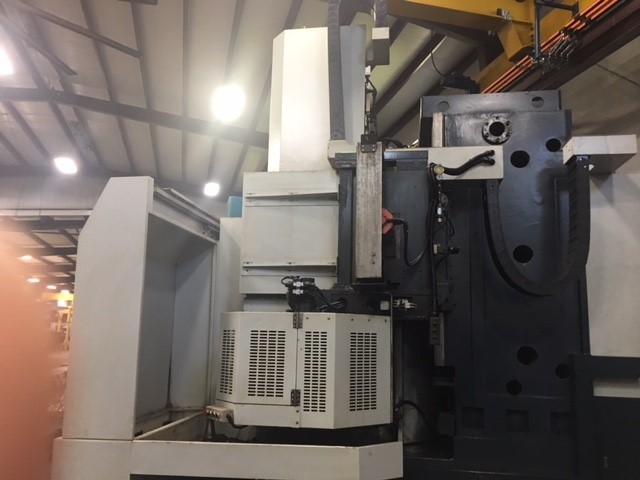

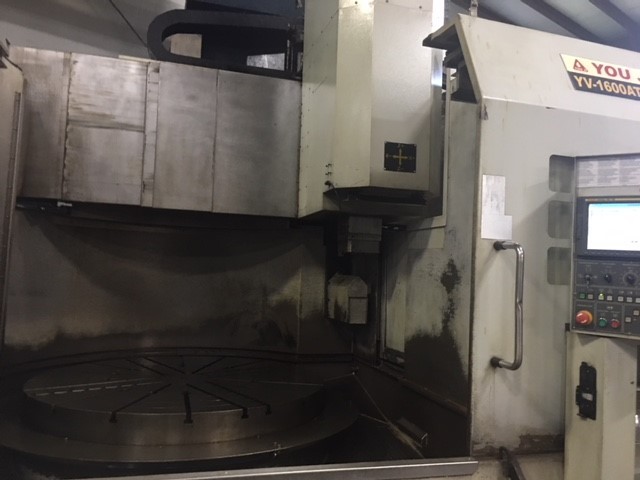

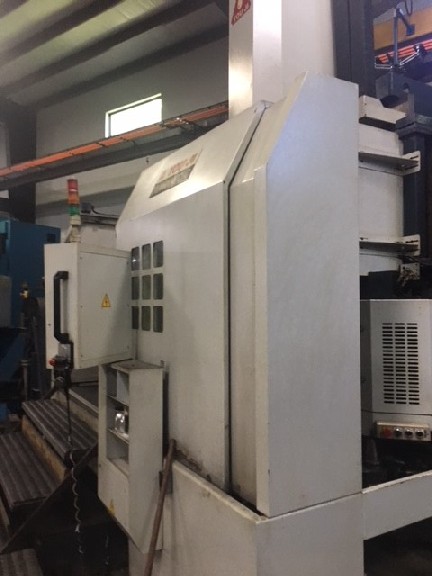

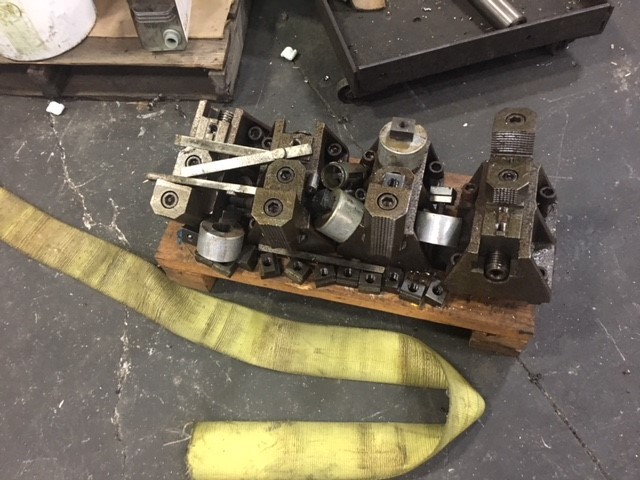

You JiYV-1600 ATC16452http://www.machinetools247.com/images/machines/16452-You Ji YV-1600 ATC.jpg
You JiYV-1600 ATC16452http://www.machinetools247.com/images/machines/16452-You Ji YV-1600 ATC 1.jpg
You JiYV-1600 ATC16452http://www.machinetools247.com/images/machines/16452-You Ji YV-1600 ATC 2.jpg
You JiYV-1600 ATC16452http://www.machinetools247.com/images/machines/16452-You Ji YV-1600 ATC 3.jpg
You JiYV-1600 ATC16452http://www.machinetools247.com/images/machines/16452-You Ji YV-1600 ATC 4.jpg
