Machine Tools 24/7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24/7 if you have any questions.

Machine IDYearManufacturerModelControl
166761997Mori-SeikiSL-150 SMCFanuc 18T

 DescriptionSpec Values
 Feed Rate (X & Z )0.04 - 479 IPM
Dimensions:Floor Space (L x W x H)108" x 72" x 78"
 Weight (approx)9,000 Lbs
Capacity:Swing / Swing Over Cross Slide26.8" / 17.91"
 Maximum Turning Diameter Main / Sub-Spindle16.92" / 12.6"
 Maximum Turning Length13.78"
Main Spindle:Speeds60 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.2" / 1.77" / A2-5
 Motor (30 min / continuous)15 / 10 HP
Sub-Spindle:Speeds50 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose1.69" / 1.1" / A2-5
 Motor (30 min / continuous)10 / 7.5 HP
Turret:Number of Positions12 Station
Travels:X-Axis Travel9.06"
 Z-Axis Travel20.47"
 B-Axis Travel (sub-spindle)16.93"
Rotary Tools:Motor (30 min / continuous)5 / 3.75 HP
Rapids:Rapid Traverse (X / Z & B)708 / 944 IPM

 Equipped With
Additional Info.:Collet Chuck on Main Sub Spindle
 Chip Conveyor
 Parts Catcher
 Live Holders
 Parts Conveyor


Click Here To Print Quote - 16676

Click Here To Email Quote Request - 16676

Take advantage of New IRS Tax Code Section 179 Depreciation says that for new and used machinery purchases up to $250,000 may be expensed in the first year…

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

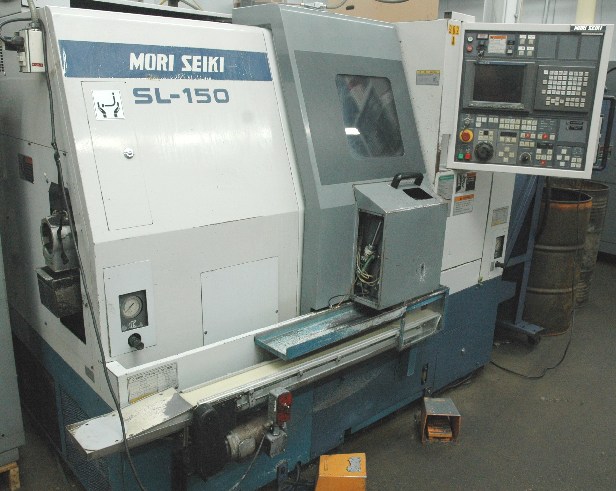

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC.jpg
Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 1.jpg

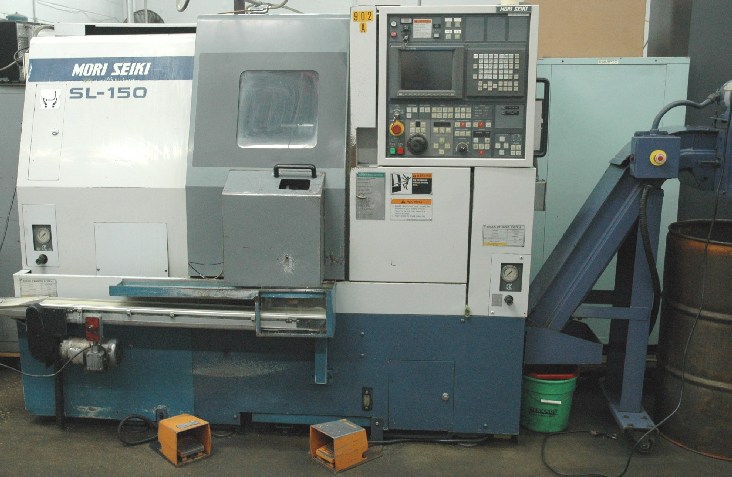

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 2.jpg

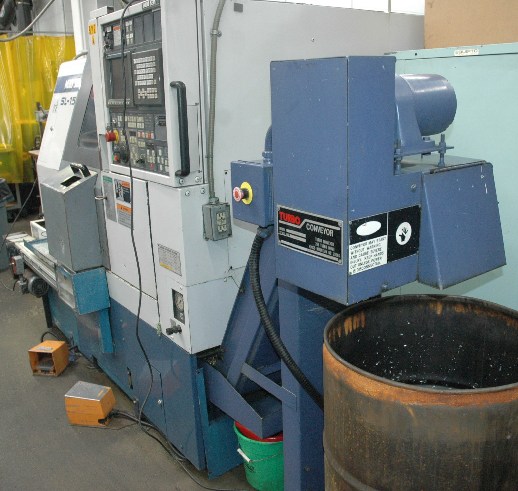

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 3.jpg

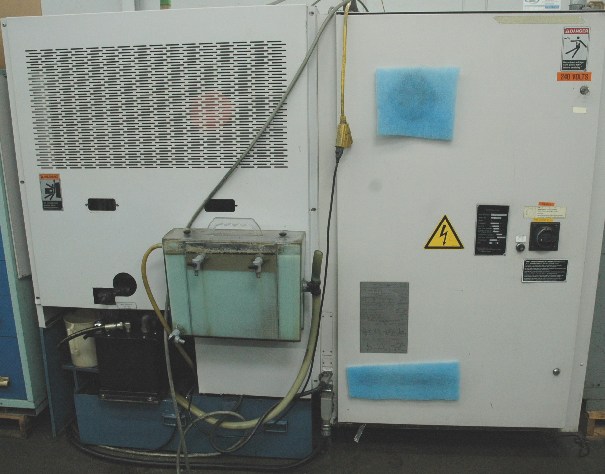

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 4.jpg

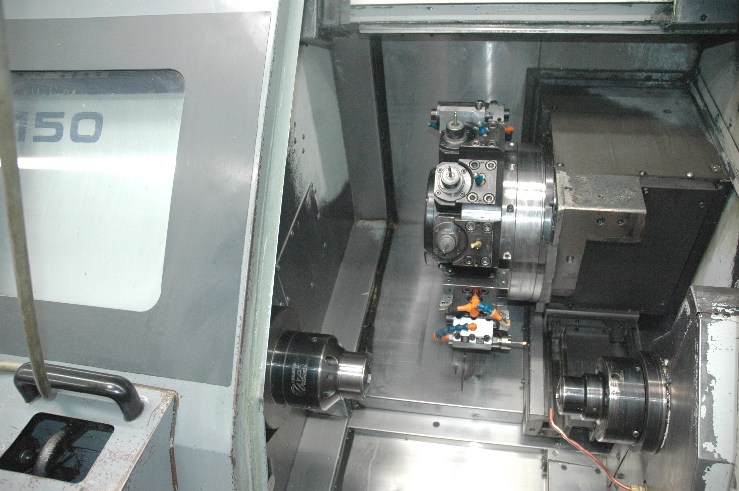

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 5.jpg

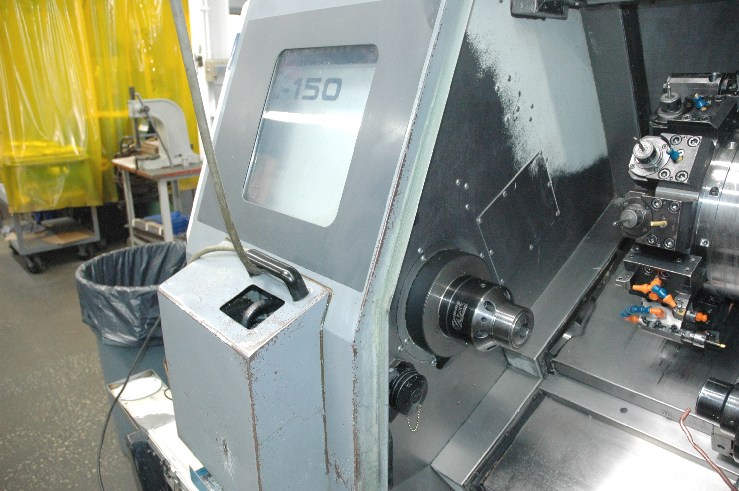

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 6.jpg

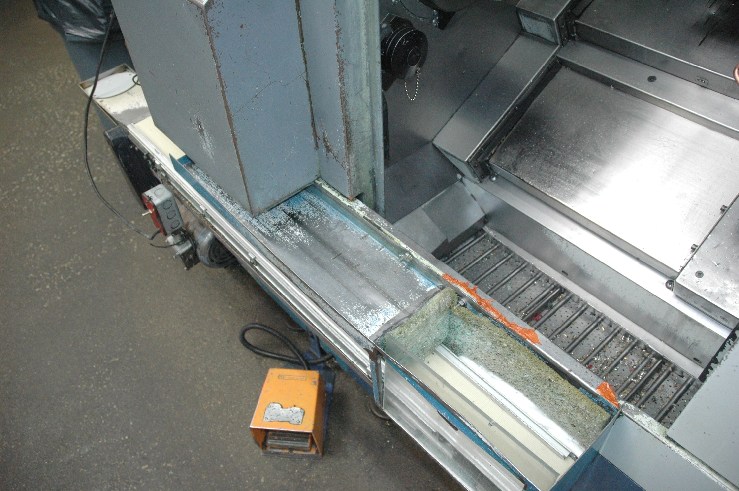

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 7.jpg

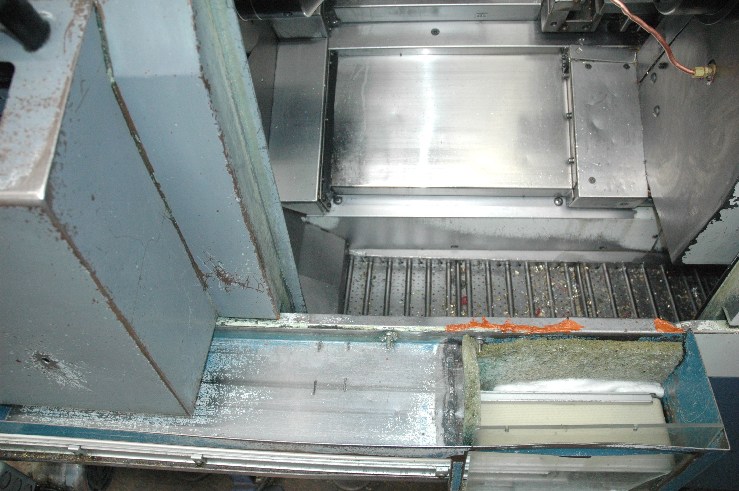

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 8.jpg

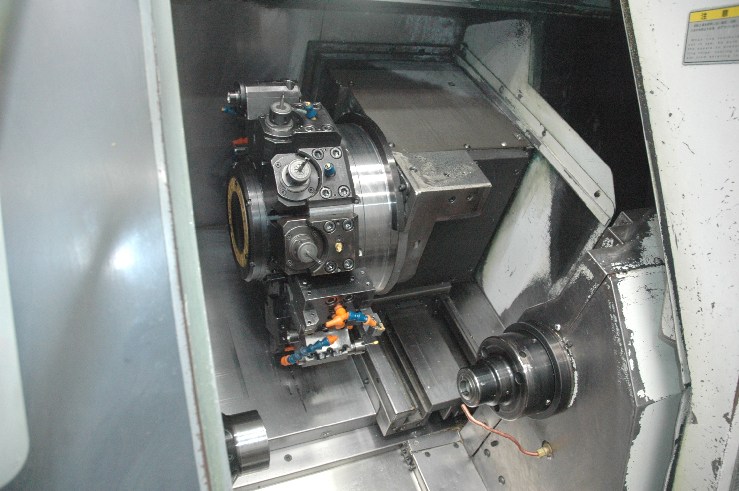

Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 9.jpg
Mori-SeikiSL-150 SMC16676http://www.machinetools247.com/images/machines/16676-Mori-Seiki SL-150 SMC 10.jpg
